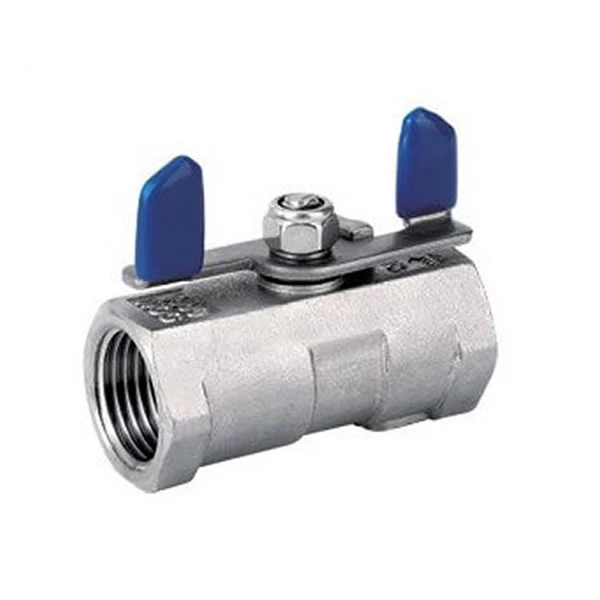

1PC Stainless Steel Ball Valve
1PC Stainless Steel Ball Valve
Size: 1/4~4"
Working pressure: 1.6-6.4mPa
Temperature range: -20°C ~ 232°C ~ 350°C
Suitable medium: water, oil, air, some corrosive liquid
Thread type: ZG.G, N
1PC Stainless Steel Ball Valve
- Size: 1/4~4"
- Working pressure: 1.6-6.4mPa
- Temperature range: -20°C ~ 232°C ~ 350°C
- Suitable medium: water, oil, air, some corrosive liquid
- Thread type: ZG.G, NPT, BSPT, BSP, DIN259/2999
| Product name | 1PC STAINLESS STEEL BALL VALVE |
| Material | SS304, 304L, 316, 316L |
| Size | 1/4''-4''&DN6-DN100 |
| Certificate | ISO9001: 2000,CE |
| Working pressure | 1000psi(6.4MPa) |
| Connection Ends | Threaded (F/F,M/F), Butt welded, Socket welded (BW, SW). |
| Suitable medium | Water, gas, air and some corrosive liquid |
| Temperature Range | -20-300 degree C |
| Investment | casting body and cap |
| Sealing | PTFE, RPTFE, PPL |
| stem | SS304,SS316 Adjustable stem packing, |
| Locking | option |
| Our advantage | Survival by quality and development by credibility. Quality first, customer upmost ! |
| 100% leakage tested at 100 psi air under water | |
| Blow-out proof stem, ball are made of ss316 or customer request | |
| Pure Teflon seals and seats | |
| Can do OEM products | |
| Delivery time | usually 30 days around and can negotiate as per order qty |
| Term of Payment | 30% TT deposit, the balance against copy of B/L |
| Package detail | Inner CTN, outside plywood case |
| Guarantee Period | 18 monthes |
| Capacity to produce | 100,000 PCS/week |
