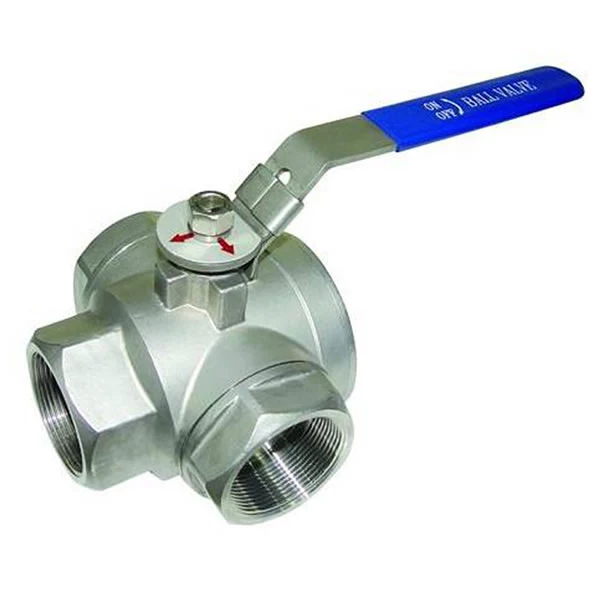

3 Way Ball Valve with Locking Device
- Production Capacity：
- 100000 Pieces Per Month
- MOQ：
- 50 PCS
- Pressure：
- PN1.0-32.0MPa
- Size：
- 1/4" ~ 4"(DN8-DN100)
- Payment Terms：
- L/C, T/T, Western Union, Money Gram
- Connection Form：
- Thread
- Standard：
- ANSI BS DIN JIS
- Thread Type：
- Tee Ball Valve
- Transport Package：
- Plywood Case
- Material：
- WCB/CF8/CF8M/CF3/CF3M
3 Way Ball Valve with Locking Device
Function Description:
Ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball (called a "floating ball") to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.
Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. These qualities make them an excellent choice for shutoff applications, where they are often preferred to gate and globe valves, but they lack their fine control in throttling applications.
Application:
Applicable Temperature: -20ºC ~ 150 ºC
Main Materials: WCB/CF8/CF8M/CF3/CF3M
Applicable Medium: Water / Oil / Gas / Causticity Medium
Pressure Rating: 1000WOG/2000WOG
Size Range: 1/4" ~ 4"(DN8-DN100)
Main Material:
| ITEM | PART | MATERIAL | ||
| 1 | Cap | CF8M | CF8 | WCB |
| 2 | Body Gasket | PTFE | ||
| 3 | Ball Seat | PTFE/RPTFE/PPL | ||
| 4 | Ball | 316 | 304 | 201 |
| 5 | Body | CF8M | CF8 | WCB |
| 6 | Stem | 316 | 304 | 201 |
| 7 | Thrust Washer | PTFE | ||
| 8 | O-Ring | Viton | ||
| 9 | Stem Packing | PTFE | ||
| 10 | Gland Nut | 304 | ||
| 11 | Bellevelle Washer | 301 | ||
| 12 | Nut | 304 | ||
| 13 | Spring Washer | 304 | ||
| 14 | Stop Nut | 304 | ||
| 15 | Locking Device | 301 | ||
| 16 | Handle | 304 | ||
| 17 | Handle Cover | Plastic | ||
| 18 | Location Pin | 301 | ||
