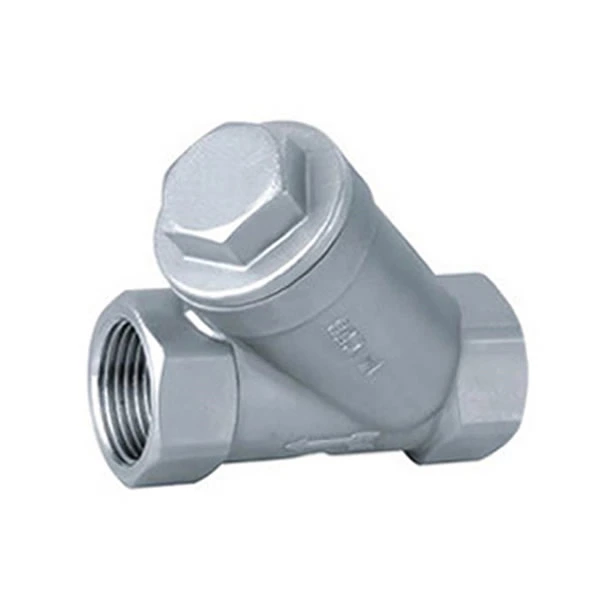

Y-Type Spring Loaded Check Valve Screw Ends
- Production Capacity：
- 50000 Pieces Per Year
- MOQ：
- 10 PCS
- Pressure：
- Ordinary Pressure
- Connection Form：
- Thread
- Standard：
- ANSI
- Transport Package：
- Plywood Case
- Material：
- Stainless Steel
- Specification：
- 1/2"-4"(Dn15-Dn100)
- Structure：
- Tubular
- Media：
- Water
- Temperature：
- Ordinary Temperature
Y-Type Spring Loaded Check Valve Screw Ends
Function Description:
- Swing check valve disc shapes as a disc, which is around seat channel shaft for rotary motion.
- Its main function is to prevent medium for backflow, the pump and drive motor for reversal and container medium for relief.
- It is suitable for low velocity and the flow doesn't often change in large diameter occasion.
Application:
- Applicable Temperature: ≤425 ºC
- Main Materials: WCB/CF8/CF8M/CF3/CF3M
- Applicable Medium: Water / Oil / Gas / Causticity Medium
- Pressure Rating: PN10-PN100, 150LB-1500LB
- Size Range: 1/2" ~ 4"(DN15-DN100)
Main Material:
| ITEM | PART | MATERIAL | ||
| 1 | Body | CF8M | CF8 | |
| 2 | Disc | CF8M | CF8 | |
| 3 | Pin | 304 | ||
| 4 | Gasket | PTFE | ||
| 5 | Gasket | PTFE | ||
| 6 | Cap | CF8M | CF8 | |
