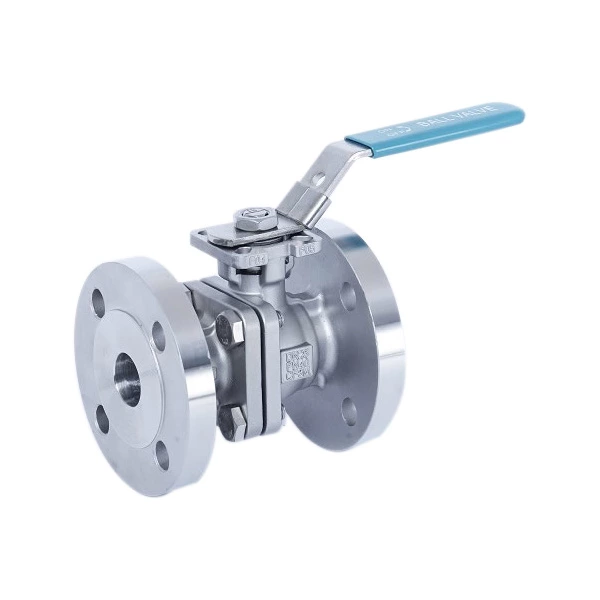

2 PC Flanged End Ball Valve With Mounting Pad
2 PC Flanged End Ball Valve With Mounting Pad
2pc split body ,relief hole on the ball for option
Full Bore
Investment casting (1/2" ~4")
Size : 1/2"~8" (DN15~DN200)
Working Pressure :150Lb~300Lb
- Pressure：
- 150Lb~300Lb /PN16~40
- Size：
- 1/2"~8" (DN15~DN200)
- Standard：
- GB,ANSI,DIN,JIS
- Material：
- WCB,CF8,CF3,CF8M ,CF3M etc
2 PC Flanged End Ball Valve With Mounting Pad
2pc split body ,relief hole on the ball for option
Full Bore
Investment casting (1/2" ~4")
Size : 1/2"~8" (DN15~DN200)
Working Pressure :150Lb~300Lb /PN16~40
Working Temperature :-20°C~250°C
Material :WCB,CF8,CF3,CF8M ,CF3M etc
Standard :GB,ANSI,DIN,JIS
Feature
- Double O-Rings third stem sealing design
- Blow-out proof stem
- Built-in ISO5211 direct mounting pad
- Pre-load 2 Belleville washer to self-adjust packing
- Double Stem sealing to comply with TA-LUFT requirements
- Anti-static devices for ball,stem and body
- Fire safe design and Construction
