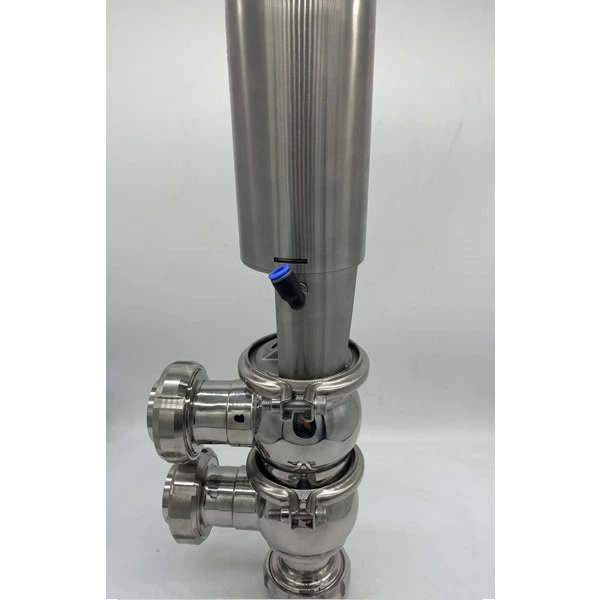

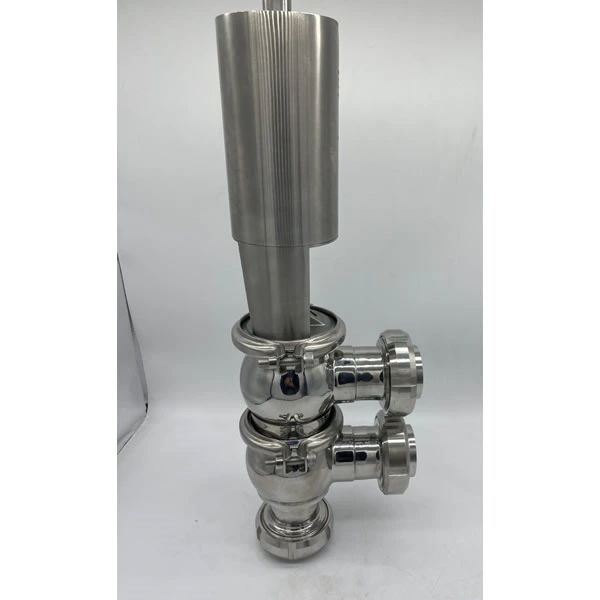

Pneumatic Stainless Steel Changeover Valve
Pneumatic Stainless Steel Changeover Valve
Technical Parameter:
Standard
ISO, 3A, DIN,SMS,IDF,RJT
Flow Medium Parts
304, 304L, 316,316L
Port Size
Dn10-150 or 1/2"-150 and 12.7mm-152.4mm
Pneumatic Stainless Steel Changeover Valve
Technical Parameter:
| Standard | ISO, 3A, DIN,SMS,IDF,RJT |
| Flow Medium Parts | 304, 304L, 316,316L |
| Port Size | Dn10-150 or 1/2"-150 and 12.7mm-152.4mm |
| Way of Connection | Weld, Male, Clamp, Flange |
| Gasket for butterfly valve | Silicone, EPDM, Viton, NBR |
| Application | It is widely applied to many fields, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc |
| Working principle | Remote-controlled operation by the driving gear or manual operation by the handle. |
Three drive forms |
Normally closed, normally opened and opened and closed by two air flues seperately. |
Handle |
Metal handle, reinforced nylon handle |
| Adjustable handle, built to order according to users' requests. | |
| Advantage | 1. Sanitary condition passed FDA Certification |
| 2. With strong resistance to acid, alkali and high temperature | |
| 3. Slight deformation under long-term compression precision forging valve cartridge. Withstand voltages | |
| 4. Appearance design: Keep pace with international latest designs | |
| 5. Service life: Comparable to imported butterfly valve, with 18months warranty for normal use |
