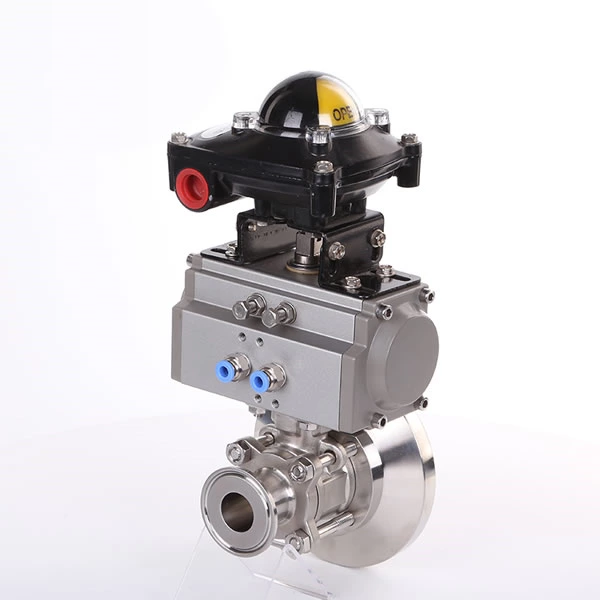

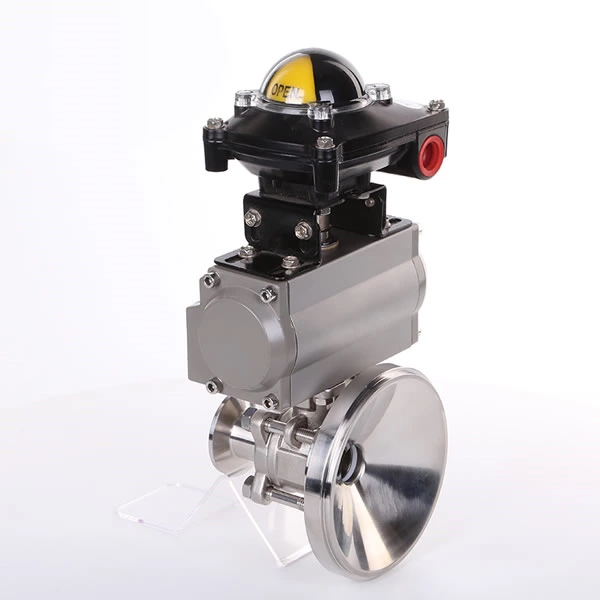

SS 304 3pc Clamp Pneumatic Actuator Tank Bottom Ball Valve
SS 304 3pc Clamp Pneumatic Actuator Tank Bottom Ball Valve
Standard
SMS,DIN,AAA,IDF,ISO,RJT
Material Quality
SS304,SS304L,SS316,SS316L
Connection ends
Clamp End, Weld end, Male end and Fe
- MOQ：
- 1 Piece
- Pressure：
- Medium Pressure
- Power：
- Pneumatic
- Size：
- 1/2"~4",DN10~DN100
- Connection Form：
- Clamp End, Weld end, Male end and Female end
- Standard：
- SMS,DIN,AAA,IDF,ISO,RJT
- Material：
- Stainless Steel
SS 304 3pc Clamp Pneumatic Actuator Tank Bottom Ball Valve
| Standard | SMS,DIN,AAA,IDF,ISO,RJT |
| Material Quality | SS304,SS304L,SS316,SS316L |
| Connection ends | Clamp End, Weld end, Male end and Female end |
| Port Size | 1/2"~4",DN10~DN100 |
| Gasket | EPDM, PTFE, Silicone, Viton etc |
| Manual drive | Sensor, Muti-positon handle level, Pull handle level |
| Pneumatic drive | Aluminum electric/Pneumatic actuator, Stainless steel electric/Pneumatic actuator |
| Intelligent C top controls | AS-I connection, Electric connection |
| Continuous working temperature | -20°C ~ +135°C (EPDM, Silicone) |
| Pressure | 0~10bar |
| Machine Processing | The most advanced CNC machine from Japan for processing |
| Special Design | we can produce according to your drawings |
