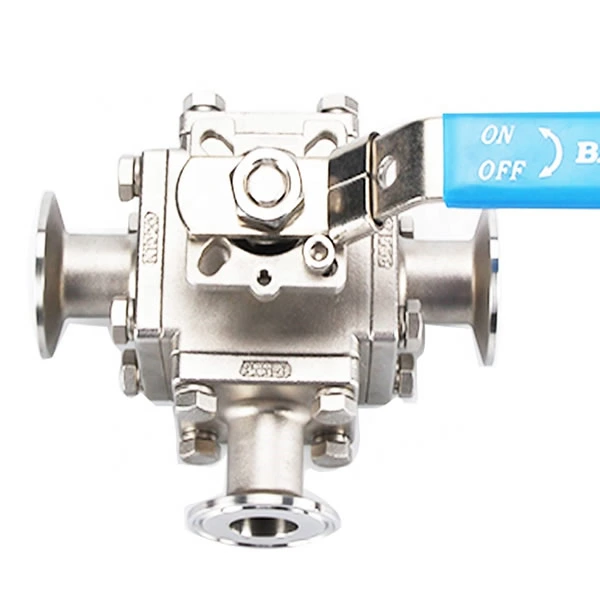

CE 2 inch full port 3 way ball valve sanitary ss304 tri clamp for food
CE 2 inch full port 3 way ball valve sanitary ss304 tri clamp for food
APPLICATIONS:
This kind of valve is widely used in the field of food pricessing, beverages, wine, biopharmaceutiacl etc.
DESIG
- Power：
- Manual
- Connection Form：
- Tri Clamp
- Standard：
- 3A.SMS.ISO.DIN
- Material：
- SS304/SS316L
- Certification：
- ISO9001
- Structure：
- Ball
- Type：
- BALL VALVES, 3-way
- Media：
- Water
CE 2 inch full port 3 way ball valve sanitary ss304 tri clamp for food
APPLICATIONS:
This kind of valve is widely used in the field of food pricessing, beverages, wine, biopharmaceutiacl etc.
DESIGN FEATURES:
| Connection: | clamp, weld, thread |
| Size: | 1/2"-4" / Dn10-Dn100 |
| Standard: | 3A, DIN, SMS, IDF, ISO |
Gasket complies with FDA177.2600
Valve body can be repaced in any connections, and the length will not change. L-port or T-port can be interchangeable on-site inlet, outlet to be any combination of changes can guarantee ddead angle, no retention.

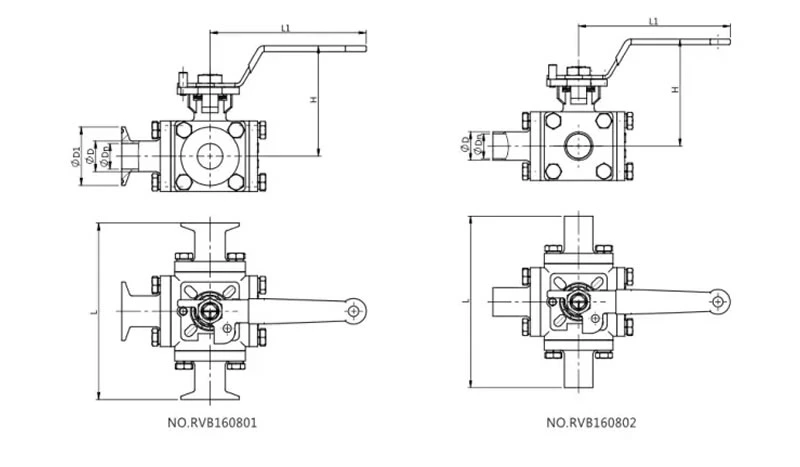

DIMENSIONS

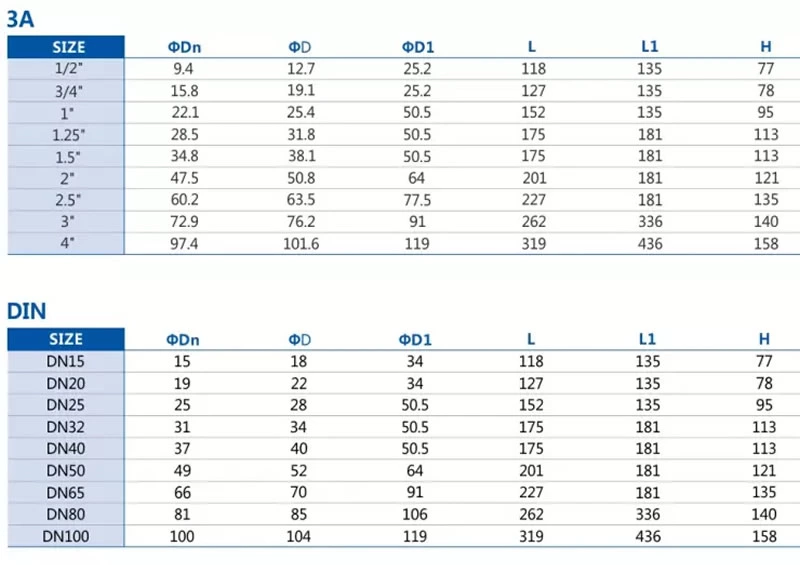

TECHNICAL PARAMETERS
