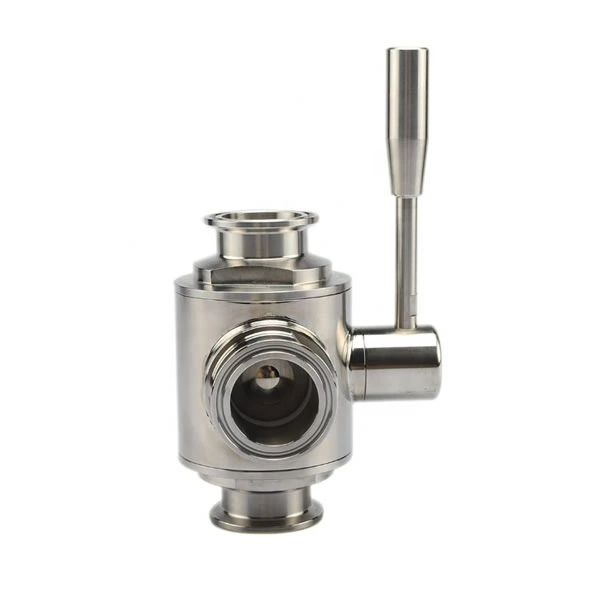

Hygienic Stainless Steel 3-way Full Bore Ball Valve Tri-clamp With Manual Type

Hygienic Stainless Steel 3-way Full Bore Ball Valve Tri-clamp With Manual Type Product name Hygienic Stainless Steel 3-way Full Bore Ball Valve Tri-clamp With Manual Type Material SS304 SS316
MOQ:
1 Piece
Pressure:
Low Pressure
Power:
Manual
Size:
DN10-DN100 or 1/2" - 4"
Connection Form:
Thread, Weld, Clamp, Flange
Standard:
DIN,SMS,3A,IDF,RJT,BPE,ISO
Material:
Stainless Steel

Hygienic Stainless Steel 3-way Full Bore Ball Valve Tri-clamp With Manual Type

Product name Hygienic Stainless Steel 3-way Full Bore Ball Valve Tri-clamp With Manual Type
Material SS304  SS316L
Size DN10-DN100 or 1/2" - 4"
connection Thread, Weld, Clamp, Flange
standard DIN,SMS,3A,IDF,RJT,BPE,ISO
Applications food,beverage,pharmaceutical,dairy products,etc

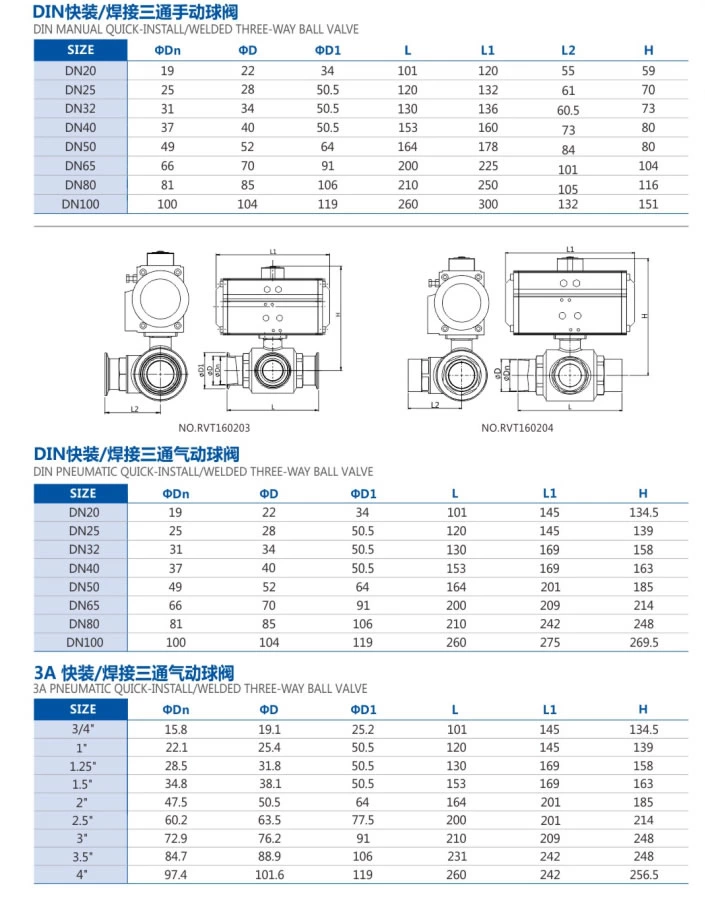

Manual sanitary stainless steel three-way full-way ball valve three clamp data picture1

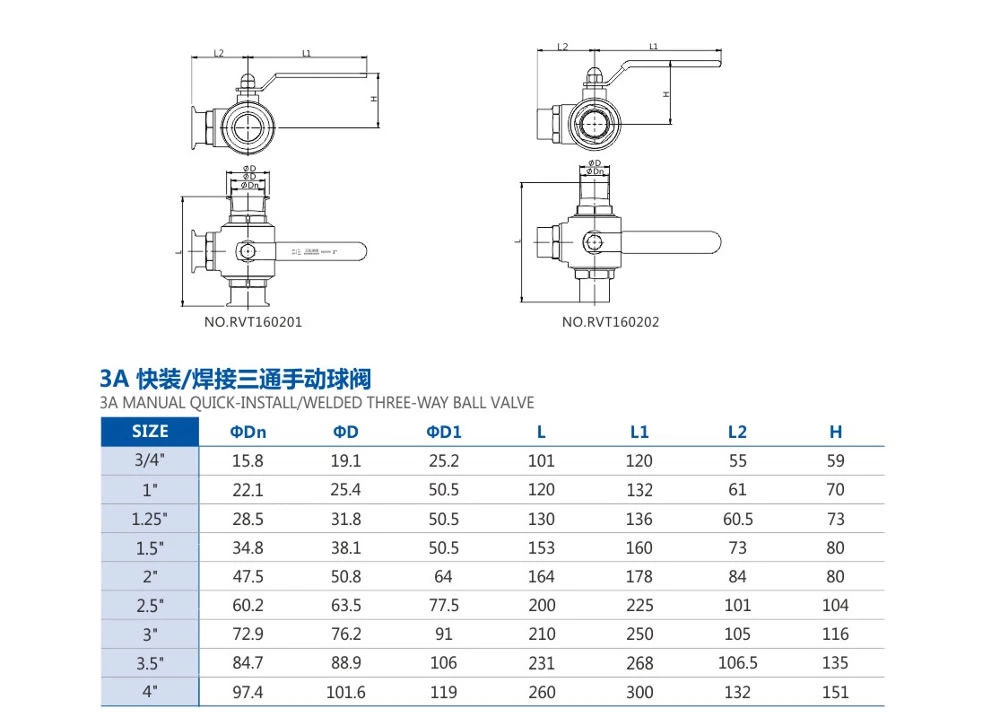

Manual sanitary stainless steel three-way full-way ball valve three clamp data picture2
