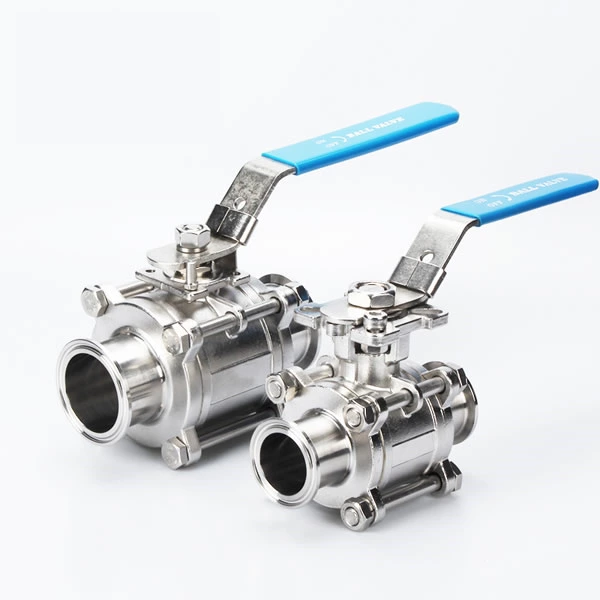

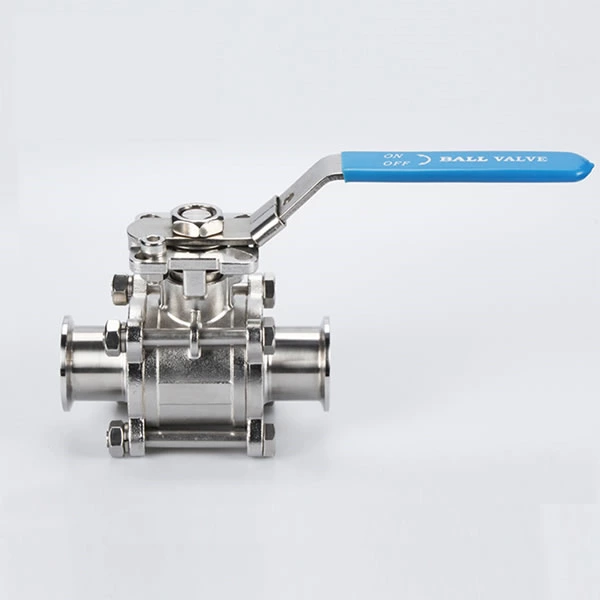

Stainless Steel SS304 1.5 inch High Full Port Ball Valve
Stainless Steel SS304 1.5 inch High Full Port Ball Valve
APPLICATIONS:
It applied in food, beverage,wine, pharmaceutical and chemical industries.
DESIGN FEATURES:
All-inclusive tee design, no stra
- Pressure：
- Medium Pressure
- Power：
- Manual
- Size：
- 1''--4''
- Connection Form：
- Clamp
- Material：
- Stainless Steel
- Structure：
- Ball
- Media：
- Base
Stainless Steel SS304 1.5 inch High Full Port Ball Valve
APPLICATIONS:
It applied in food, beverage,wine, pharmaceutical and chemical industries.
DESIGN FEATURES:
All-inclusive tee design, no stranded high clean, meet the requirement of CIP and SIP sterillization and cleaning, and heat resistance of 180°C, the highest pressure 10 bar.
Available with a variety of structures, such as electric pneumatic, stainless steel, horizontal vertical pneumatic, key manually handle, can also be equipped with the control unit, locata, position sensor and other conpatible automatic control system.
Valve body can be replaced in any connections, adnd the length will not change.
Connection: clamp, weld, thread, flange.
Material for the part contacted with media is 304/636L, other part is 304.
| Size: | PTFE, it is according to FDA117.2600. |
| Sealing material: | 1/2"-4" / DN10-100 |
| Standard: | 3A,DIN, SMS, IDF, RJT, BPE, ISO |

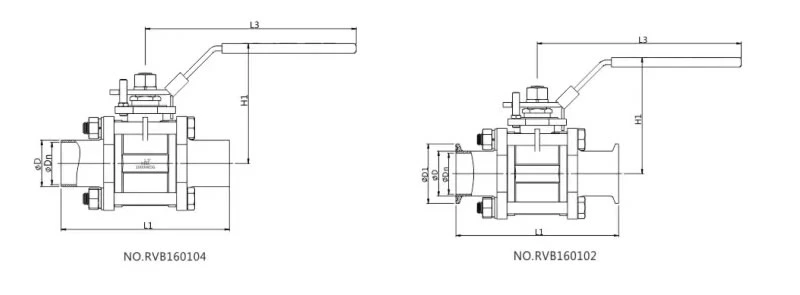

Dimensions
