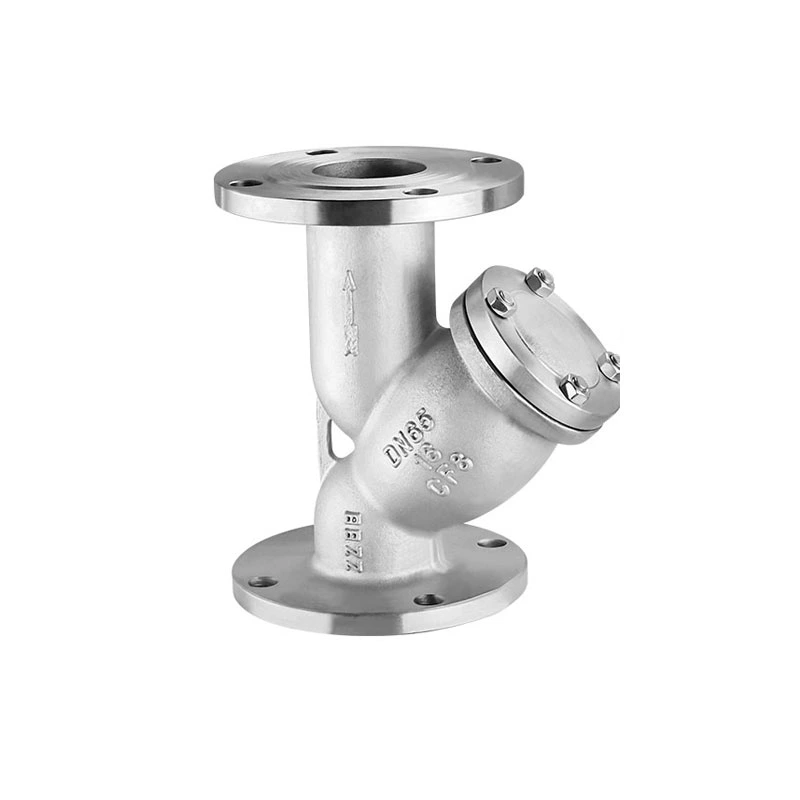

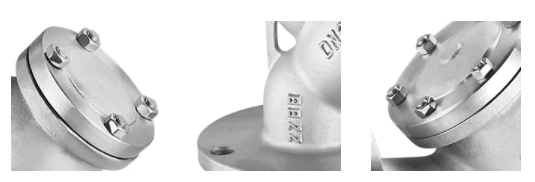

Flanged Y Pattern Strainer Threaded Y Strainer

Product Description

Product Parameters

Product Description

Y strainers mechanically remove solids from flowing steam, gases or liquid piping systems with the use of a perforated or wire mesh straining screen, and are used to protect equipment. They get their names from their configuration, which includes a branch angled off the flow path.

Y strainers are most often used for steam and gases, but are also used for liquids. They have less debris holding capacity and higher pressure drops than basket strainers, but they can be used in either horizontal or vertical pipe runs where flow is downwards. They can also be fitted with a blow-off connection at the end of the branch end that includes a valve, which allows for cleaning. The valve is opened without shutting off the flow or disassembling the strainer, as the flow through the pipe will flush out the solids in the screen.

Materials List

	DN		50Lb     150LbP  150LbR

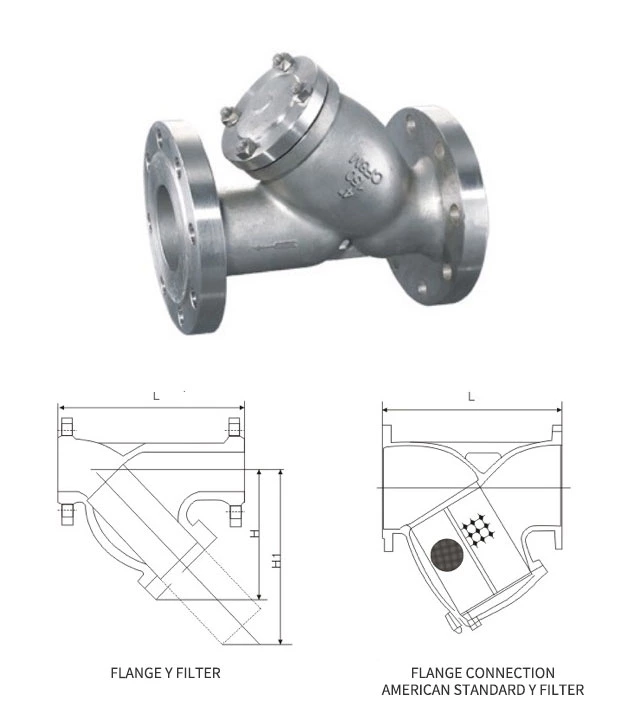

	mm	in	L	D	D1	D2	b	f	n-φd	H
	15	1/2"	130	90	60.3	34.9	10	2	4-16	102
	20	3/4"	145	100	69.9	42.9	10.9	2	4-16	113
	25	1"	150	110	79.4	50.8	11.6	2	4-16	143
	32	1-1/4"	180	115	88.9	63.5	13.2	2	4-16	166
	40	1-1/2'	200	125	98.4	73	14.7	2	4-16	184
	50	2"	220	152	120.7	92.1	16.3	2	4-19	213
	65	2-1/2"	250	180	139.7	104.8	17.9	2	4-19	303
	80	3"	280	190	152.4	127	19.5	2	4-19	328
	100	4"	300	230	190.5	157.2	24.3	2	8-19	385
	125	5"	350	255	215.9	185.7	24.3	2	8-22	465
	150	B"	380	280	241.3	215.9	25.9	2	8-22	530
	200	B"	480	345	298.5	269.9	29	2	8-22	665
	250	10"	550	405	362	323.8 .	30.6	2	12- 26	720
	300	12"	610	485	431.8	381	32.2	2	12- 26	805
	350	14"	680	535	476.3	412.8	35.4	2	12- 29	862
	400	16"	780	595	539.8	469.9	37	2	16-29	908
	450	18"	850	635	577.9	533.4	40.1	2	16-32	929
	500	20"	900	700	635	584.2	43.3	2	20-32	1000
	600	24"	1125	815	749.3	692.2	48.1	2	20-35	1200
