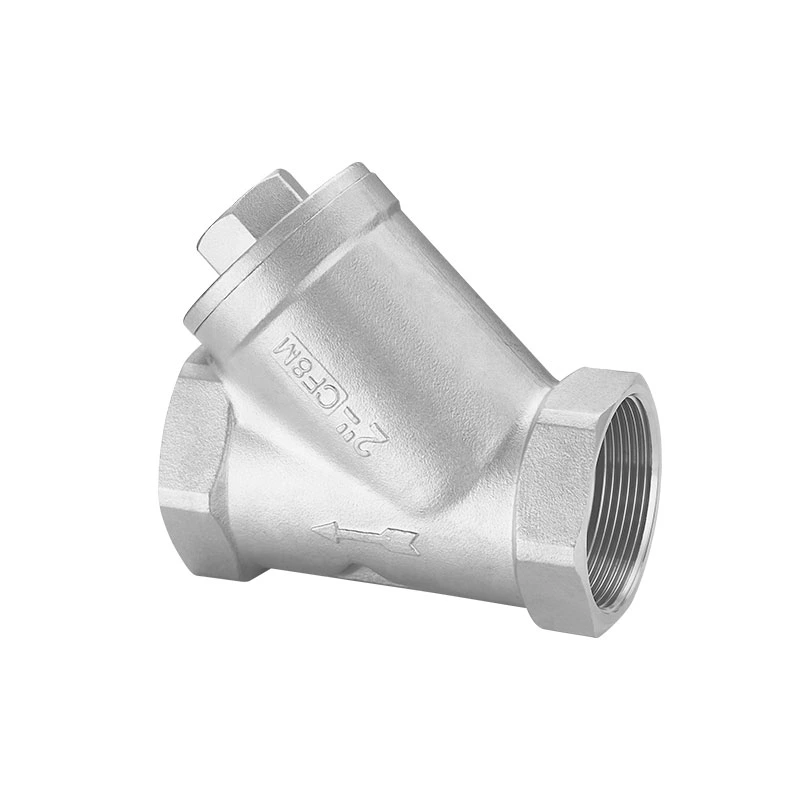

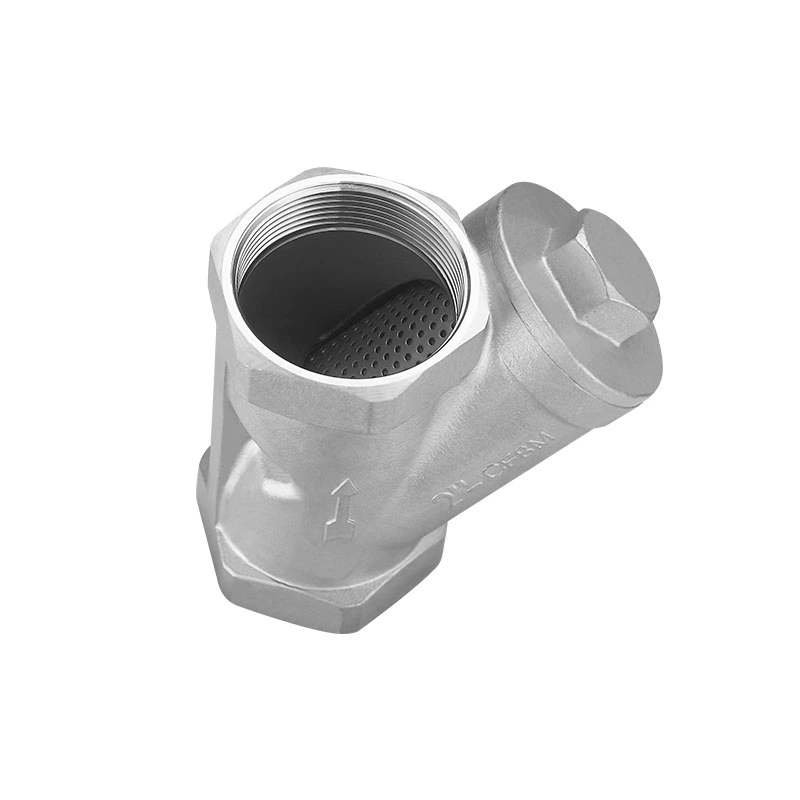

Stainless Steel Y Strainer Screw End CF8/CF8M
- MOQ：
- 1000pcs
- Size：
- 1/4”-4”
- Payment Terms：
- T/T, L/C, PayPal, Wechat Payment
Product Description
Product Parameters
|
Media |
Water, Oil & Gas |
|
Material |
Stainless Steel |
|
Connection Form |
Thread |
|
Driving Mode |
Manual/Pneumatic & Electric |
|
Nominal Pressure |
1000psi |
|
Channel |
Tee Type |
Product Description
Three Way Ball Valves have 3 ports. We always call them " T"-port 3 way Ball Valve and "L"-Port 3 Way Ball Valves. The main difference is the ball inside the valve bodies.L port 3 Way Ball Valve's Ball with 2 Holes, T port 3 Way Ball Valve's Ball with 3 Holes. So the direction of water flow will be different between this two type 3 Way Ball Valve.

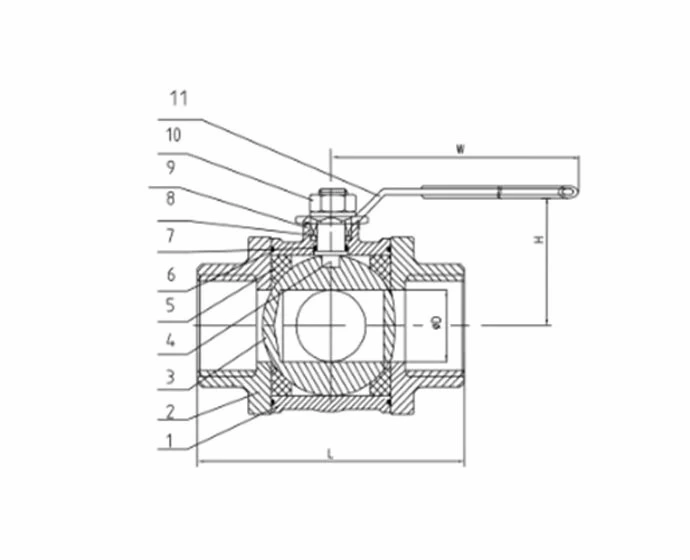

Main Size
|
Size |
D |
L |
H |
W |
|
1/2" |
15 |
70 |
56.5 |
95 |
|
3/4" |
20 |
78 |
63.5 |
122 |
|
1" |
25 |
86 |
68 |
143 |
|
1-1/4" |
32 |
110 |
73.5 |
158 |
|
1-1/2" |
40 |
130 |
82 |
179 |
|
2" |
50 |
145 |
93.5 |
180 |
Material Parts
|
NO |
Parts Name |
Material |
|
1 |
Body |
CF8/CF8M |
|
2 |
Cap |
CF8/CF8M |
|
3 |
Ball |
SS304/SS316 |
|
4 |
Stem |
SS304/SS316 |
|
5 |
Seat |
PTFE/RPTFE |
|
6 |
Seal Ring |
PTFE |
|
7 |
Stem Seal |
PTFE |
|
8 |
Packing |
PTFE |
|
9 |
Gland Nut |
SS304 |
|
10 |
Nut |
SS304 |
|
11 |
Handle |
SS201/SS304 |
POSITIONS POSSIBLES

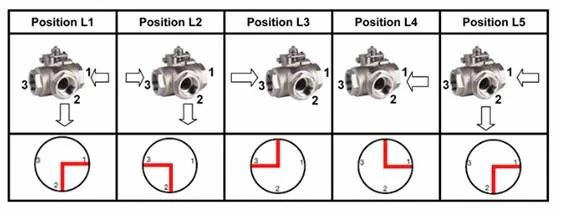

● Luiere en L ( seulement 2 positions consécutives sont possibles )

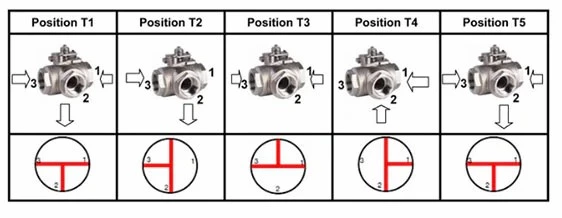

● Luiere en T ( seulement 2 positions consécutives sont possibles )
